LANmark-6 Snap-In Connector

LANmark-6 Snap-In Connector

  • Category 6 Snap-In connector
  • Available in unshielded and shielded version
  • Fast and easy termination without punch down tool
  • Wiring according to colour code T568B or T568A
  • Reterminable
  • Stranded version available for consolidation points
  • Supports POE Plus applications (Type 1 and Type 2)
  • An adapter can be added to fit the keystone format
Add to comparator
Contact us

Products

Actions
Filters

  • 5 products

LANmark-6 Evo Snap-In Connector Category 6 Unscreened

Aginode ref. N420.660

  • Screen: No
  • Colour: Light grey



LANmark-6 Evo Snap-In Connector Category 6 Unscreened Stranded Wire

Aginode ref. N420.661

  • Screen: No
  • Colour: Light grey



LANmark-6 Evo Snap-In Connector Category 6 Screened

Aginode ref. N420.666

  • Screen: Yes
  • Colour: Light grey



LANmark-6 Evo Snap-In Connector Category 6 Screened Stranded Wire

Aginode ref. N420.667

  • Screen: Yes
  • Colour: Light grey



LANmark-6 Evo Snap-In Connector Category 6 Unscreened Eco-24

Aginode ref. N420.660-ECO24

  • Screen: No
  • Colour: Light grey



Description

Description

Standards

IEC 60603-7-4; IEC 60603-7-5; IEEE 802.3af (PoE); IEEE 802.3at (PoE+); ISO/IEC 11801

Application

Aginode LANmark-6 Evo Snap-In connectors are manufactured and tested to the latest Category 6 specifications defined in the International and American cabling standards and are designed to meet or exceed the quality and performance criteria needed to support all applications up to 250 MHz.

  • 10 BASE-T Ethernet
  • 100 BASE-T Fast Ethernet
  • 1000 BASE-T Gigabit Ethernet
  • 155 Mb ATM
  • 622 Mb ATM
  • 1.2 Gb ATM
  • POE Plus (including IEC 60512-9-3 and IEC 60512-99-001)
  • Future Class E applications

Design

Aginode LANmark-6 Evo Snap-In connectors are designed to match with LANmark-6 cable and patch cords and to complement all LANmark modular components, such as:

  • Snap-In patch panels (fixed, sliding and angled) and Zone Distribution Boxes
  • Snap-In outlet modules (UK, US, European and German style)

Performance

Aginode LANmark-6 Evo Snap-In connectors meet or exceed the requirements for Category 6 connecting hardware as described in ISO/IEC 11801, IEC 60603-7 and EIA/TIA 568-C.2.

Installation

The wire organiser guarantees fast and easy termination of the LANmark-6 Evo Snap-In connector without the need for a punchdown tool. An optional comfort tool (N420.567) can be used to increase the ease of installation.
A stranded version is available for CP to TO links.

Guarantees

The LANmark-6 Evo Snap-In performance is guaranteed to meet or exceed the requirements of the above mentioned standards.

Traceability codes on both connector and packaging ensure quality validation.

Installations with LANmark-6 cable and connectivity are qualified for a 25 year full system warranty, which includes Parts, Installation, Channel Performance and Application Support, as described in the Aginode Certified System Warranty.

Mechanical and electrical characteristics

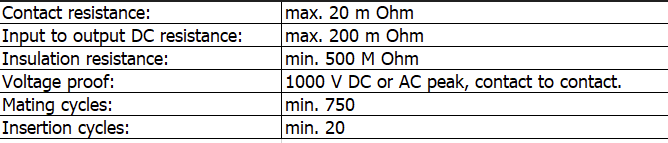

2022-07-12 16_26_57-Freetable LM6 connectors additional characteristics_1 - Compatibility Mode - E.png

Electrical performance


Characteristics

Characteristics

Construction characteristics
Colour
Light grey
Screen
No
