Cat.6A 500 F/UTP LSZH Dca

Products

AGINODE C6A 500 F/UTP LSZH Dca 4P 500m IVOIRY

Aginode ref. 10272117

  • Sheath colour: Ivory
  • Number of pairs: 4
  • Packaging: Drum 500 m



AGINODE C6A 500 F/UTP LSZH Dca 2x4P 500m IVOIRY

Aginode ref. 10272121

  • Sheath colour: Ivory
  • Number of pairs: 8
  • Packaging: Drum 500 m



Description

Description

Standards

EN 50173; EN 50288; EN 50575; IEC 60332-1; IEC 61156-5; ISO/IEC 11801

Application

F/UTP Category 6A cables are the standard offering from Aginode. Manufactured in accordance with ISO IEC 61156-5 requirements, the F/UTP cable is the best choice to support all Class EA applications like Ethernet, Fast Ethernet, Gigabit Ethernet, … Cat 6A F/UTP cables are suitable for basic voice and data installations up to 500 MHz. Aginode Cat.6A  cables, combined with a similar class of performance connectivity,  are suitable for voice and data installations according to ISO/IEC 11801, EN 50173 and TIA/EIA 568 standards.

Construction

  1. Conductor: solid bare copper
  2. Insulation : Polyethylen (EN 50290-2-23) - Two insulated conductors twisted to a pair
  3. Cross filler - 4/2 laid up together
  4. Tinned copper drain wire
  5. Screen: ALU/PET foil - Alu inside
  6. Outer Jacket : LSZH - Dca

Environment

Designed to reduce the environment impact, Aginode cables are compliant with RoHS 2011/65 Directive and European Reach 1907/2006/EC regulation. The outer sheat of the cabel is made of halogen free material (IEC 60754-1 / EN 50267-2-1), whith limited fumes emission (IEC 61034-1/2 / EN 50268-1/2) and no acid gaz emission in case of fire (IEC 60754-2 / EN 50267-2-2).
Aginode measure the environmental impact of each of the cable. Upon request the PEP Ecopassport or the Eco Material Declaration could be available.

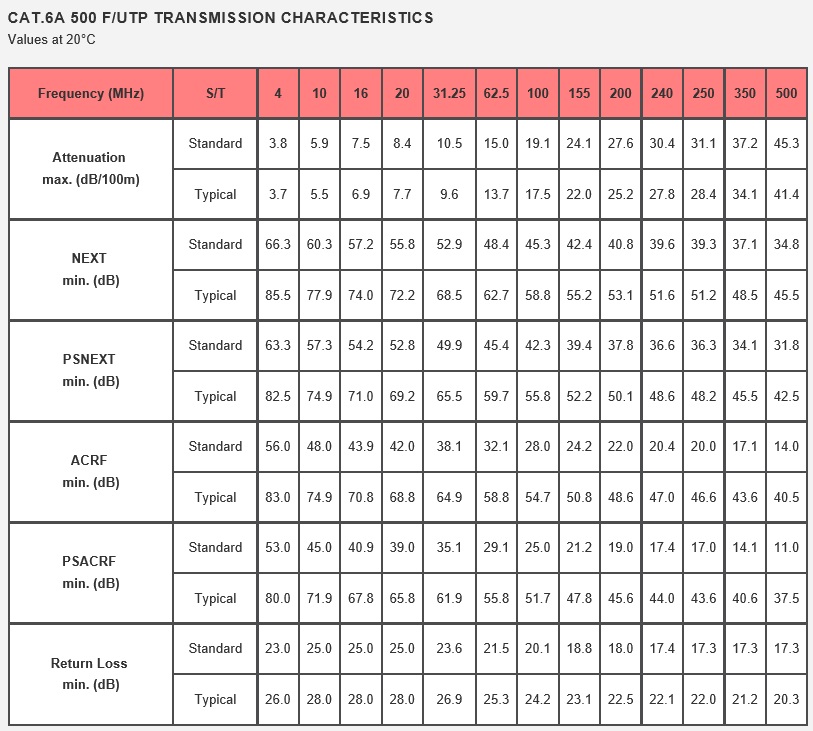

Cat 6A 500 F-UTP TRANSMISSION CHARACTERISTICS

Characteristics

Characteristics

Construction characteristics
Outer sheath
LSZH
Sheath colour
Ivory
Dimensional characteristics
Number of pairs
4
Usage characteristics
Flame retardant
IEC 60332-1
Packaging
Drum 500 m
